nNetDiode
Overview
Hardware-enforced ‘Smart physical one-way data transmission system’
Adopted a physical one-way data transmission adaptor where only Tx path is connected, and Rx path is physically cut down/blocked. It provides unhackable security between the separated networks and fundamentally prevents from any of security accidents. And it also solves the problems caused by one-way data transmission.

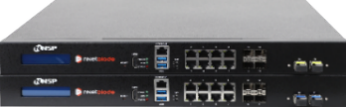

| Product Type | One-way Data transfer rate |
Data collect/delivery port(per side) |
|---|---|---|
|
1 Gbps | [Copper] 4x1G |
|
1 Gbps | [Copper] 8x1G [Fiber] 4x1G |
|
10 Gbps | [Copper] 8x1G [Fiber] 4x1G & 4x10G |
Acquired certification
CC
GS
KS
Preferential-Purchase Product
Domestic/
Global Patent
Grand prize of new S/W
Core competitiveness
- Built-in physical on-way data transmission adaptor
Implement unhackable / impassible physical barrier at H/W-enforced System
- Automatic detection of data/system errors, real-time data re-transmission
Security specialized technology/algorithm protected by domestic/global patent
- Support more than 200 of known/unknown IT/OT protocols
Plentiful on-site experience/knowledge accumulated through largest number of domestic references

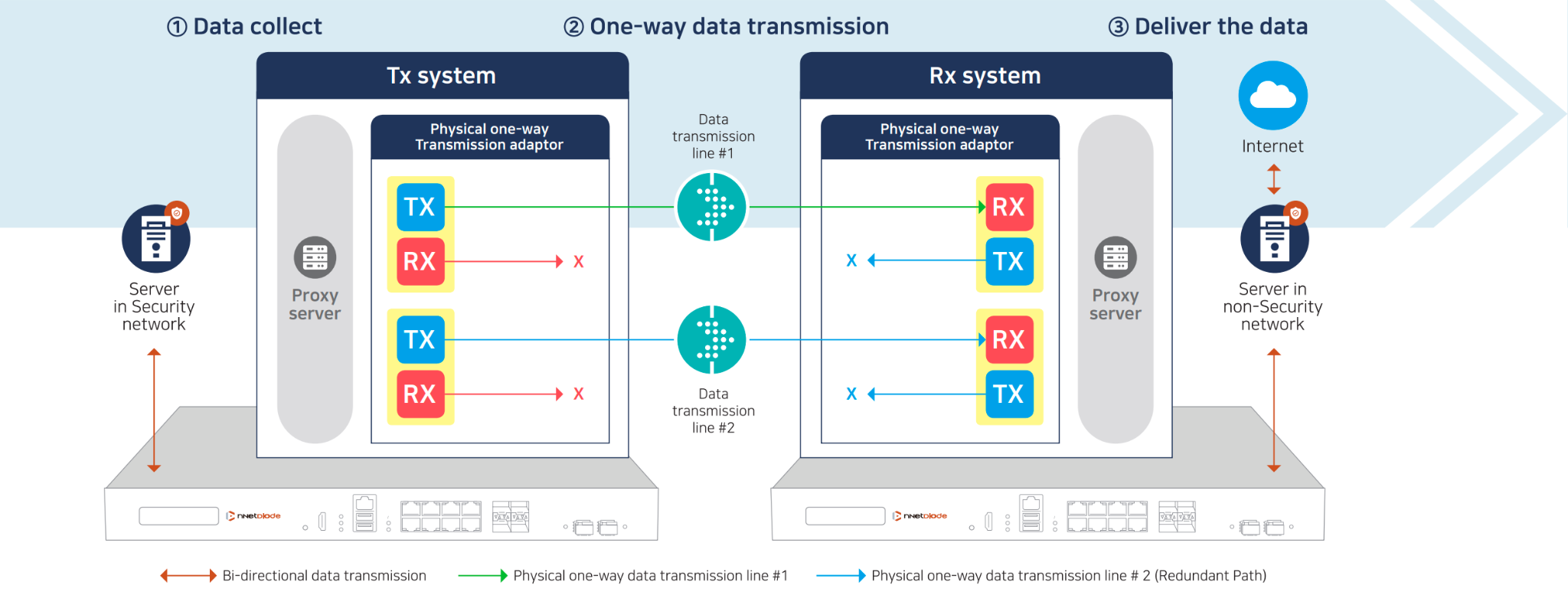

How to Work

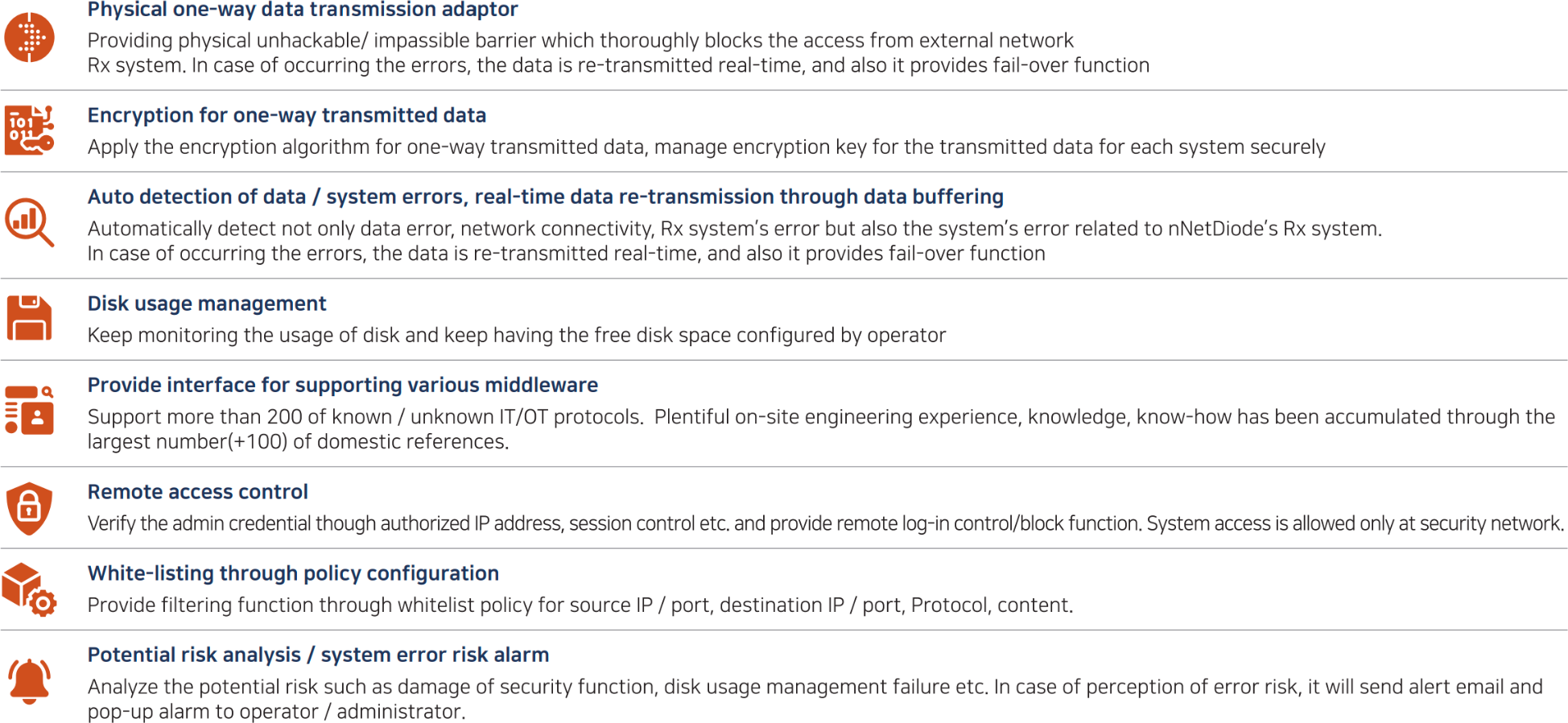

General Features
