nNetTrust

Overview

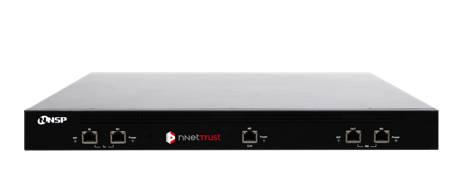

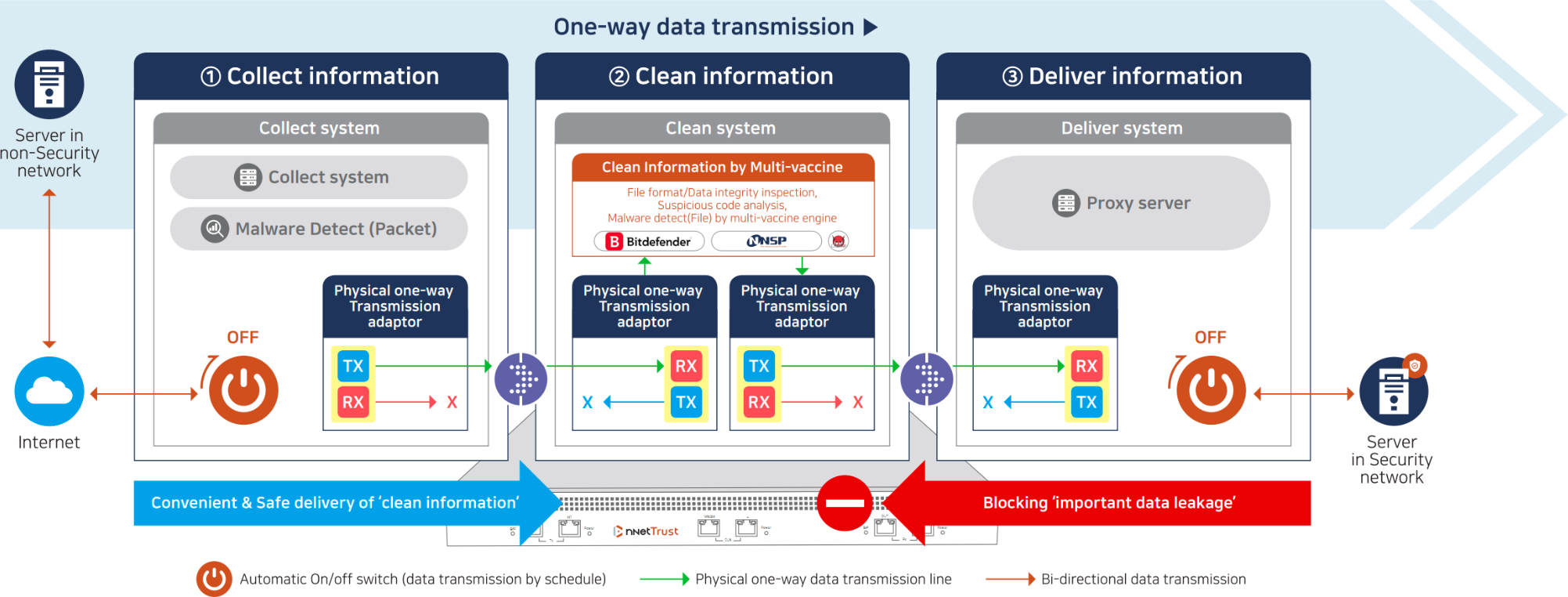

Hardware-enforced ‘Innovative physical one-way data transmission system’ consisting of three(3) of proxy servers which are Collect, Deliver system and Clean system having multi-vaccine engine. After checking the collected information(Material, file, software update, patch) from external network through schedule-base automatic on/off switch, only the cleaned safe/permitted information is delivered to internal Security network. Also, bulit-in one-way data transmission adaptor prevents from leaking of any of internal data.

Product Type	One-way Data transfer rate	Data collect/delivery port(per side)
Apply 3 of proxy server (Collect, Clean, deliver system) Each system has its physical power on/off switch at rear side	1 Gbps	[Tx system] 2 X 1G [Rx system] 2 X 1G [Clean system] 1 x 1G

Acquired certification

CC
Ks
Domestic/Global Patent

Core competitiveness

Deliver cleaned info. to internal network / prevent internal data leakage
Multi-vaccine engine is implemented at clean system. Data transmission line going for external network is physically cut down/blocked
Automatic data collection switch based on the configured schedule
Data collection switch is on only at the configured schedule
Adopt all the core HW/ S/W technologies of nNetDiode
physical one-way data transmission, varius functions for data integrity are applied
